Key Points Straight Lines

Straight Lines

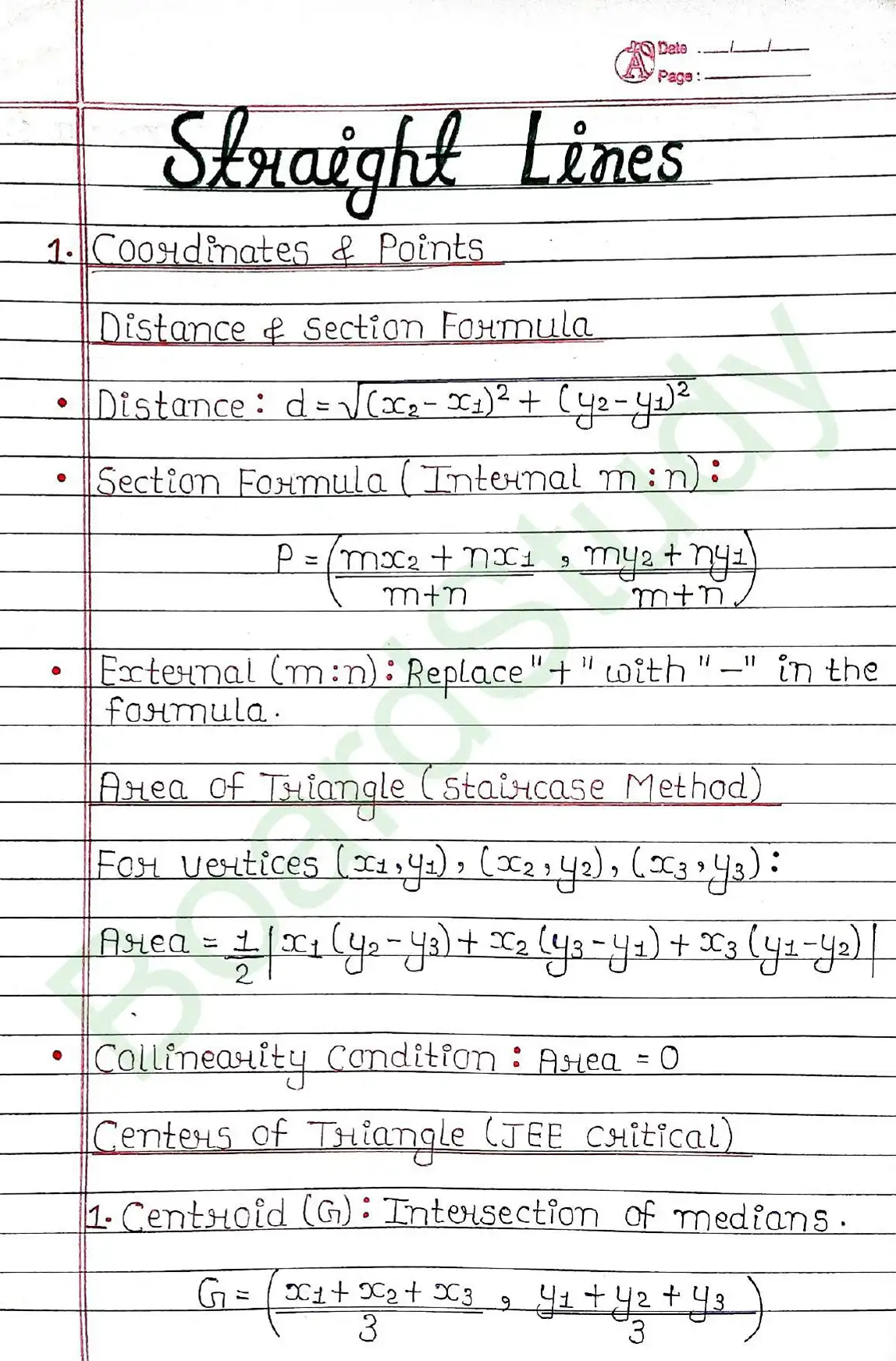

Distance between the points $P(x_1, y_1)$ and $Q(x_2, y_2)$ is$$PQ = \sqrt{(x_2 – x_1)^2 + (y_2 – y_1)^2}$$

The coordinates of the point which divides the join of $(x_1, y_1)$ and $(x_2, y_2)$ in the ratio $m:n$

Internally is

Externally is

Midpoint of the join of $(x_1, y_1)$ and $(x_2, y_2)$ is

Area of the triangle

Area of the triangle whose vertices are
$(x_1, y_1), (x_2, y_2), (x_3, y_3)$ is

If the area of triangle ABC is 0, then three points A, B and C lie on a line i.e., they are collinear.

Centroid of triangle

The coordinates of centroid of the triangle are$$\left( \frac{x_1 + x_2 + x_3}{3}, \frac{y_1 + y_2 + y_3}{3} \right)$$

Straight Line

General equation of line is$$ax + by + c = 0$$

Slope or Gradient of line (m)

The inclination of angle $\theta$θ to a line with positive direction of x-axis in the anticlockwise direction, the tangent of angle $\theta$θ is said to be slope of a line.$$m = \tan\theta = \frac{y_2 – y_1}{x_2 – x_1}$$

NOTE:

• Slope of a line parallel to X-axis is zero.
• Slope of a line parallel to Y-axis is not defined.

If two lines are parallel, their slopes are equal$$m_1 = m_2$$

If two lines are perpendicular to each other, then their product of slopes is −1$$m_1 m_2 = -1$$

Collinearity of three points

If A, B & C are three points in the XY plane, then they will lie on a line i.e., three points are collinear if and only if$$\text{slope of } AB = \text{slope of } BC$$

Various forms of the equation of a line

Horizontal & Vertical lines

If a line is at a distance $a$a and parallel to X-axis, then the equation of the line is$$y = \pm a$$

If a line is at a distance $b$b and parallel to Y-axis, then the equation of the line is$$x = \pm b$$
